ZWVS 440 - 730

ZWVS 440 - 730
ZWVS 440 - 930
Hybrid ready
Navy
ZWVS gearboxes have been specially designed for fast vessels such as naval units, patrol boats, yachts and other vessels with similarly high performance demands.
Subject to technical modifications.

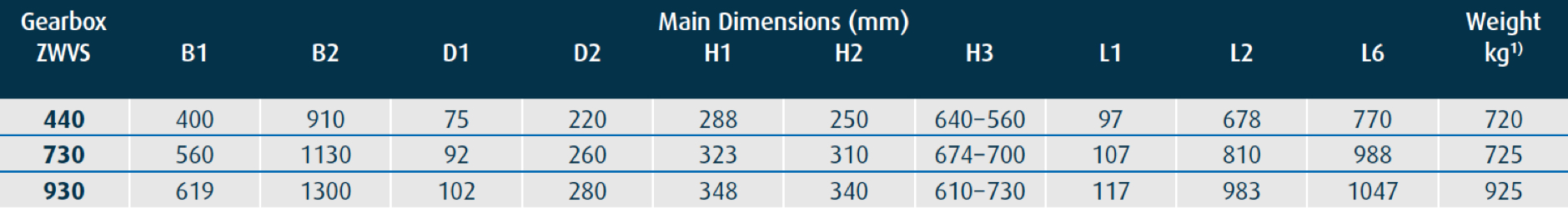

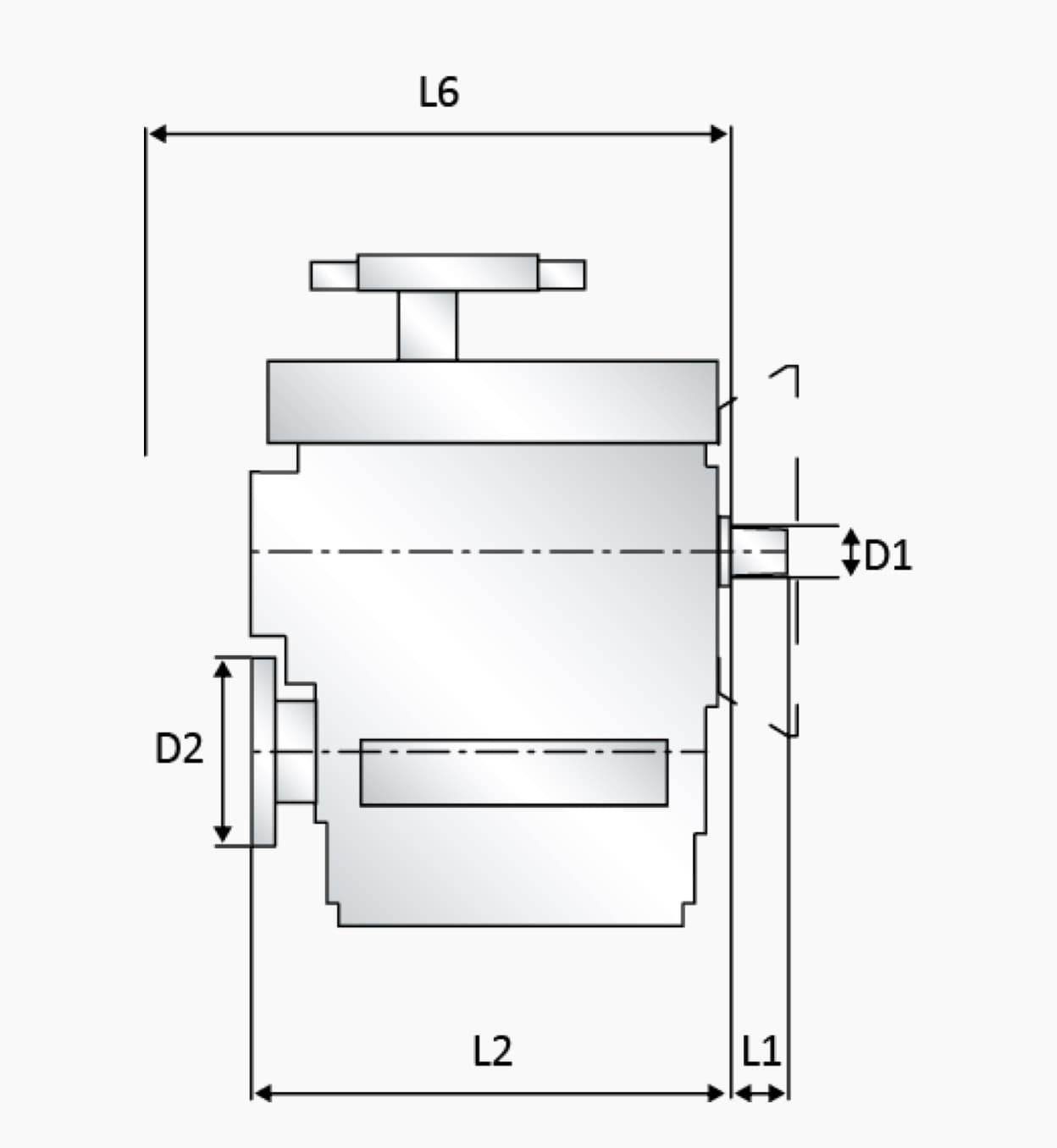

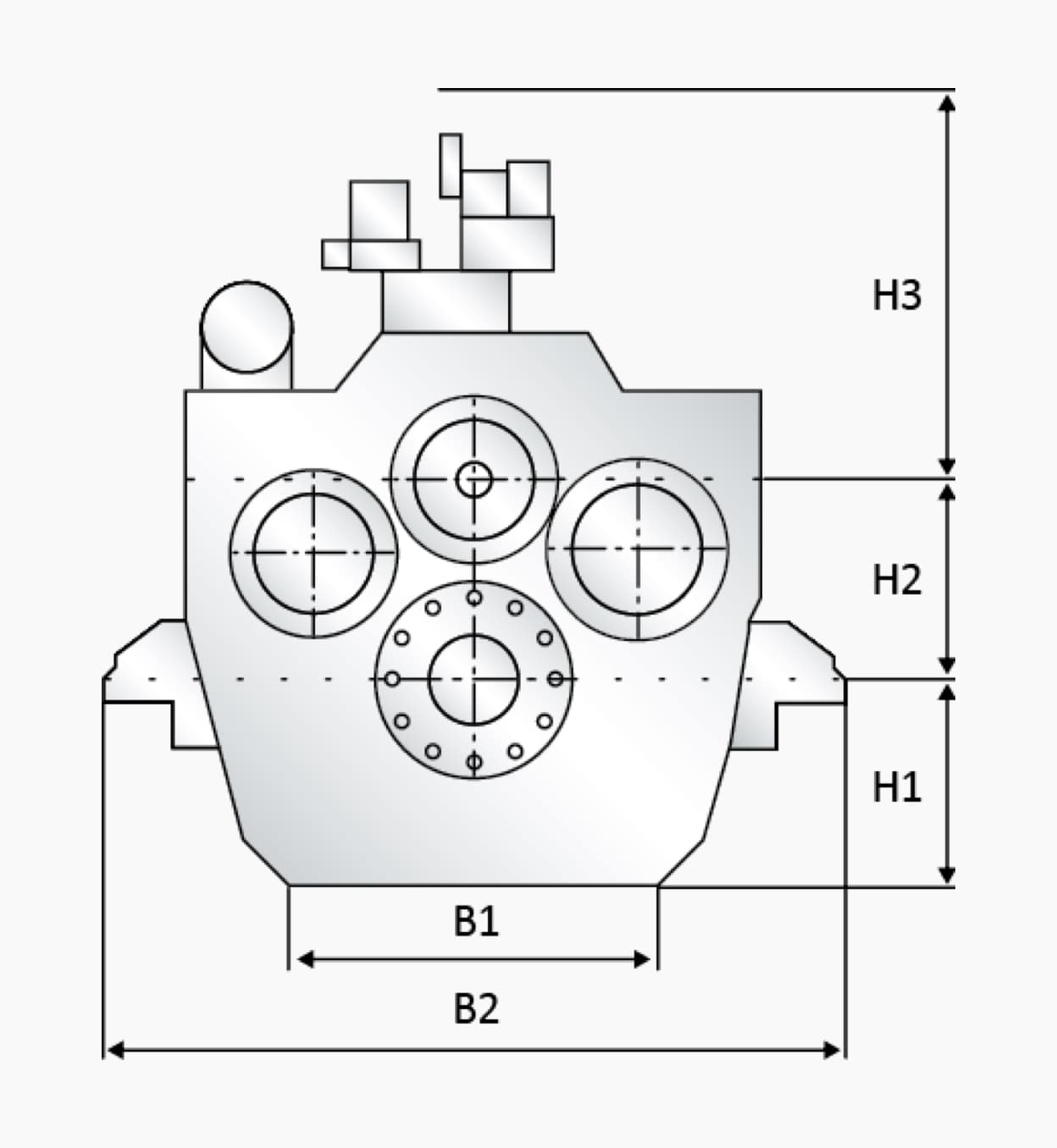

Main Dimensions

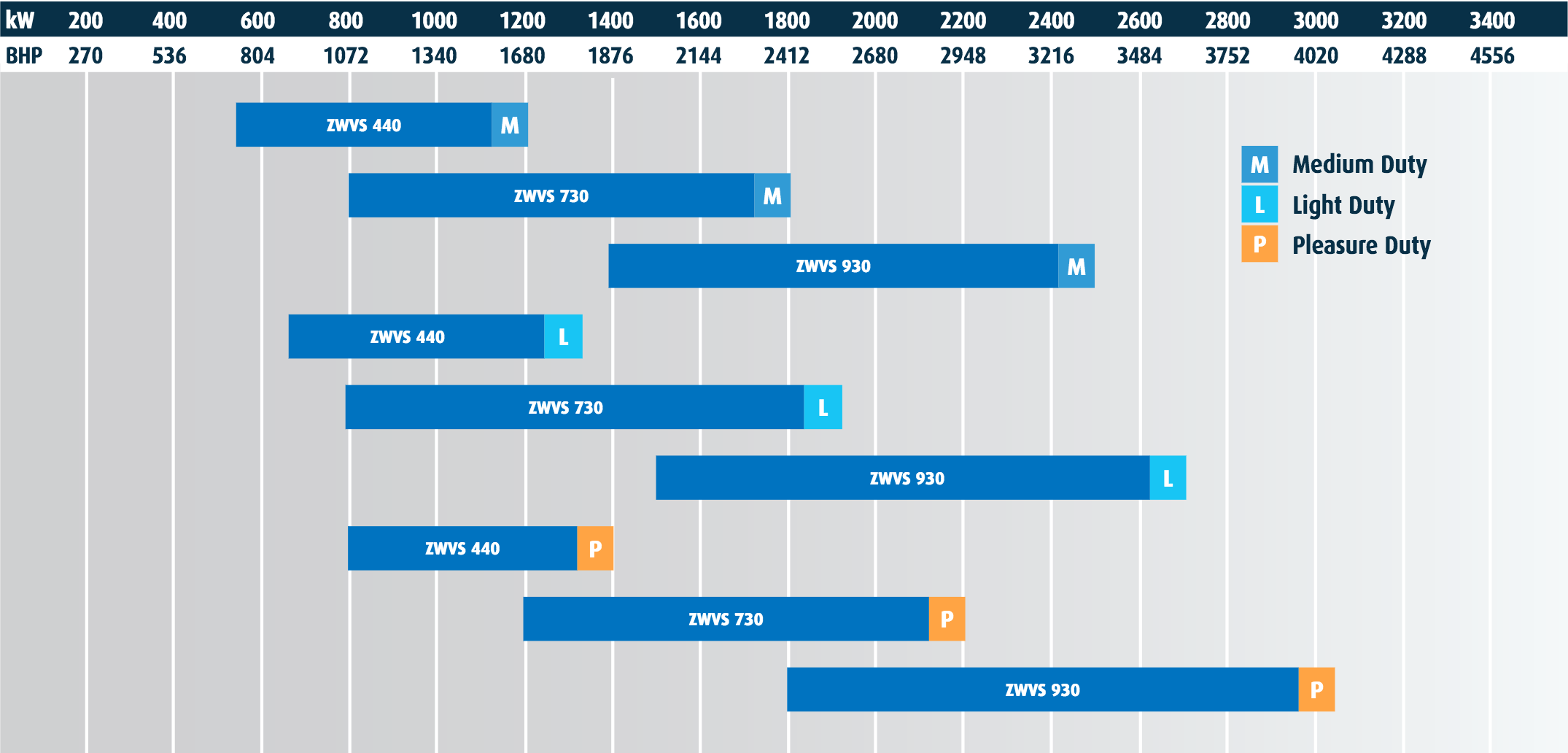

Ratings

Versions
- Housing made from aluminium alloy
- Prepared for mounting of SAE bell housings
- Spur wheels helically toothed, case‐hardened with ground tooth flanks
- Hydraulically operated disc clutch with steel/sinter friction surface
- Smooth engagement by means of adapted pressure increase during shifting
- Full power transmission and identical reduction in both output senses of rotation
- Integrated oil sump
- Common circuit for operating oil and lube oil. Oil pump and oil filter accessible from the outside
- Fitted heat exchanger for cooling water inlet temperature of max. 32 °C, seawater resistant
- Fitted manometer for operating pressure as well as connection for remote supervision of pressure and temperature
- Connection facility for remote supervision of pressure and temperature
- Control valve with electric operation
- Input: free shaft end with taper 1:30
- Output: forged-on flange
- Paint coating with synthetic resin varnish. Colour: RAL 7001 silver grey
- Resilient mounting
- SAE bell housing
- Output: counter flange
- Flexible coupling
- Supervision instruments
- Spare parts kit as per classification rules
- Trolling propulsion system (ADS)
- Auxiliary drives (PTO and PTI)
- Control valve with mechanical operation
- Resilient mounting
- Special reduction ratios
Options
The gearboxes can be fitted with an additional Power Take Off or Power Take In (application: hydraulic pumps and generators).
The gearboxes of the ZWVS model series can also be diagonally offset.
All gearboxes can be supplied with additional supervision instruments, according to classification requirements, enabling the operator to take all necessary information from the bridge

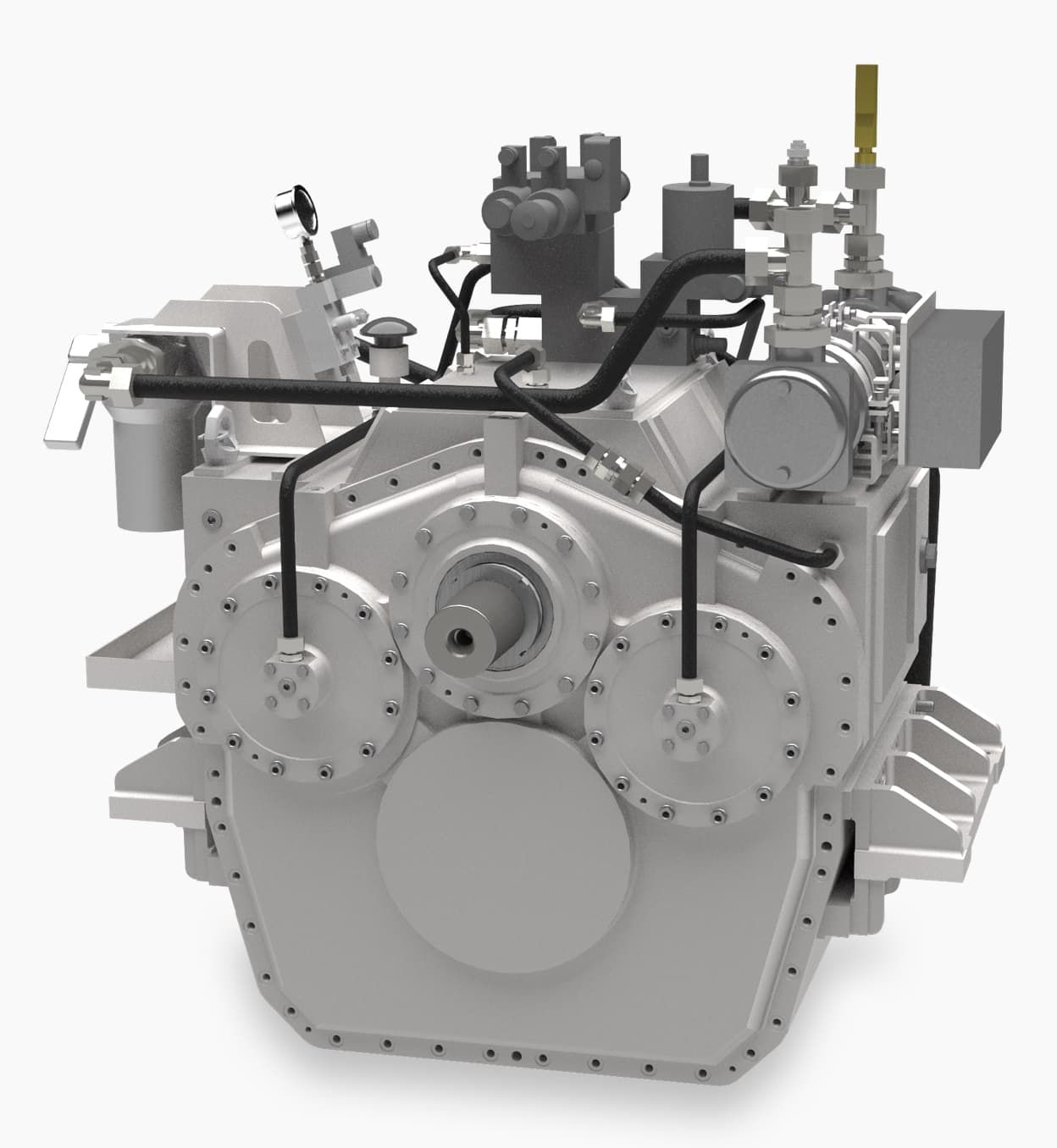

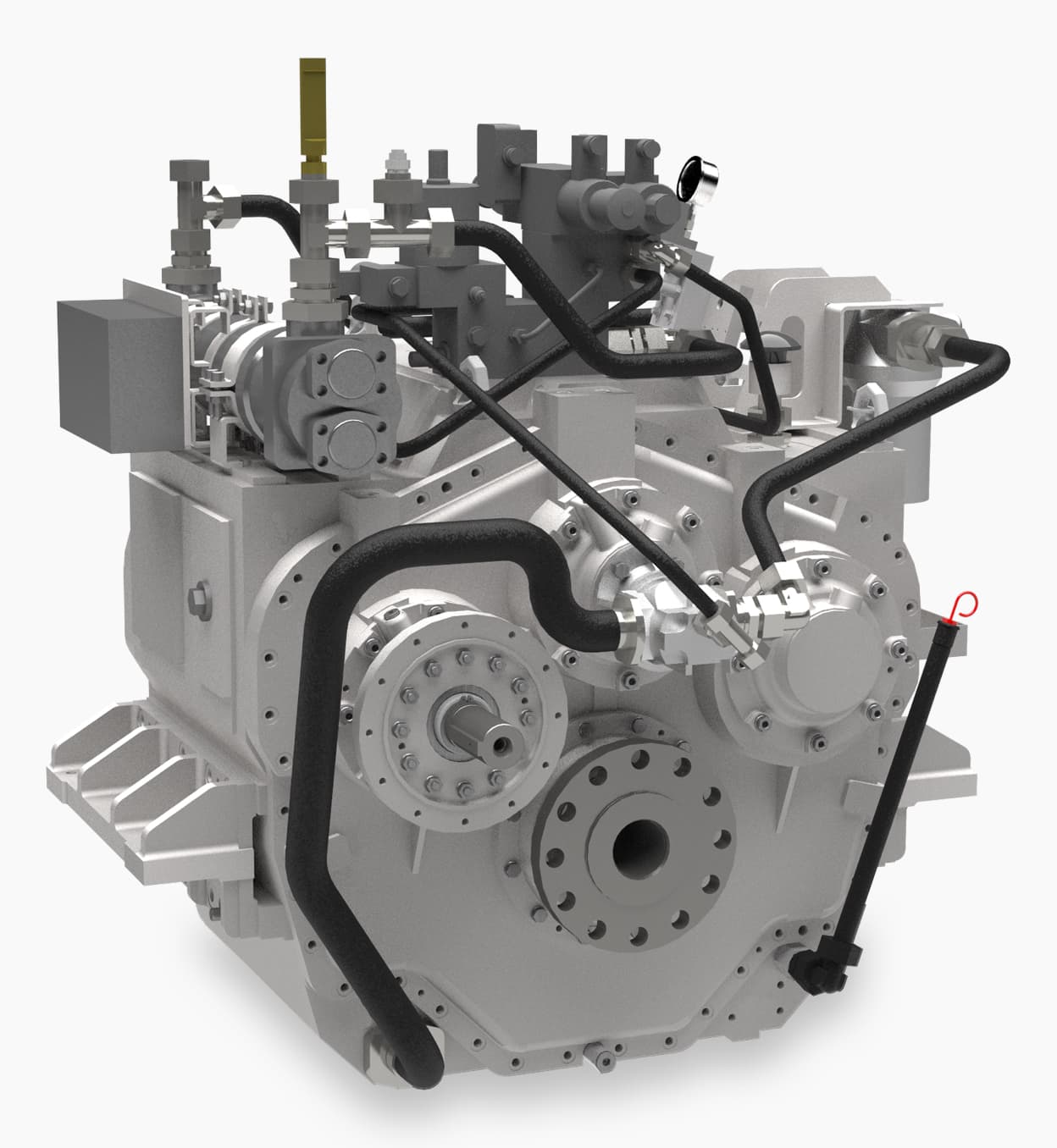

Impressions
